Description

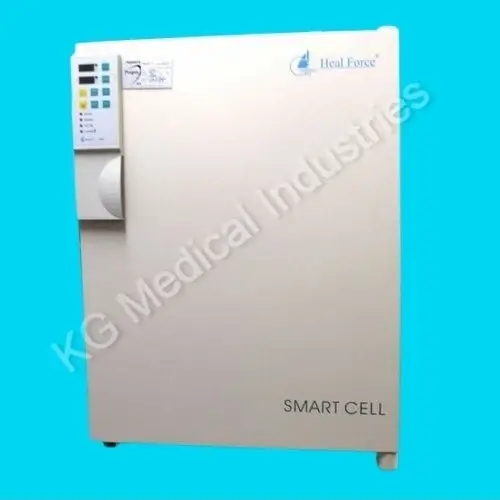

Heal Force HF 90 CO2 Incubator
Heal Force HF 90 CO2 Incubator incubator is widely used in scientific research and in IVF Labs (In-vitro Fertilizations Labs) to grow and maintain cell cultures. Heal Force HF 90 Air Jacketed CO2 Incubator is a true and tested product. Therefore it has several installation within the world. Heal Force IVF Lab CO2 Incubator is best product for IVF lab uses since long times.
This Heal Force incubator provides. You with unsurpassed natural simulation to ensure optimum growth conditions for your culture at all time.
That is why this incubator become the first choice of researchers in fields of application includes tissue engineering. In vitro fertilization, neuroscience, cancer research and other mammalian cell research in all the world.
Inlet Hepa filter for CO2 (Carbon Dioxide) supply
All gas injection lines are always filtered via international quality HEPA filter to remove impurities and contaminants before being injected into the incubator’s chamber. This HEPA filter is able to filter particles larger than 0.3 micron at 99.99% or more.
Auto-start function in Incubator
Auto-start function, which considerably simplifies the equipment’s operation with easy way of use, contains the incubator’s automatic start-up and the measuring system’s calibration. Incubator has thermal conductivity CO2 sensor which has its baseline automatically reset without manual adjustment system. This incubator can be loaded immediately after the start-up routine is completed as soon as possible.
90℃ Moist Heat Disinfection (Decontamination Procedure)
HF90 Incubator is equipped with 90 C moist heat disinfection system. The validated overnight sterilization cycle ensures reliable destruction of germs that could interfere with your work and requires no extra work, such as removal of interior fittings. Mycoplasma is 100% eliminated in a routine disinfection cycle.
Ultraviolet Disinfection System
This Incubator has option of ultraviolet lamp at the inner back of HF151UV and HF212UV to sterilize chamber air and water in the reservoir to maintain contamination-free conditions within the chamber. In other words this gives maximum effect of disinfection. However wavelength of UV light is kept at 254nm.
Technical Specification of Heal Force HF 90 CO2 Incubator
| Model | HF 90 Air Jacketed CO2 Incubator |
| Exterior dimensions
(W×D×H) |
637×762×909(mm)
25.1×30.0×35.8(inch) |
| Interior dimensions
(W×D×H) |
470×530×607(mm)
18.5×20.8×23.9(inch) |
| Interior Volume | 151L/5.3cu.ft. |
| Net Weight | 80kg/176lbs. |
| Inner door | 3 inner doors standard |
Temperature |
|
| Temp. control system | Microprocessor |
| Temp. sensor | PT1000 |
| Temp. uniformity | ±0.2 C |
| Temp. stability | ±0.1C |
CO2 |
|
| Inlet pressure | 0.1 MPa |
| CO2 control system | Microprocessor |
| CO2 sensor | Thermal conductivity |
| CO2 range | 0 to 20% |
| CO2 stability | ±0.1% |
| Humidity | |
| Relative humidity | ≥95% |
| Water reservoir volume | 3 Liter |
Shelves |
|
| Shelf dimensions
(W×D) |
423×445(mm)
16.7×17.5(inch) |
| Shelf construction | 3,10 |
| Standard, Maximum | Type 304, mirror finish, stainless steel |
Fittings |
|
| Access port | Standard |
| Air filter | 0.3μm, Efficiency:99.998% (for CO2) |
| Remote alarm contacts | Standard |
| De-contamination | 90 C moist heat disinfection |
| Rated power | 600W |
| Power supply | 220V/50Hz (standard), |
| Alarm system | Power interruption * High/low temperature * Deviation of CO2 * RH * Door ajar * Independent overheat protection |
| Data output of Heal Force HF 90 CO2 Incubator | RS232 (Optional) |
Above all, we mentied complete specification of Heal Force CO2 Incubator.

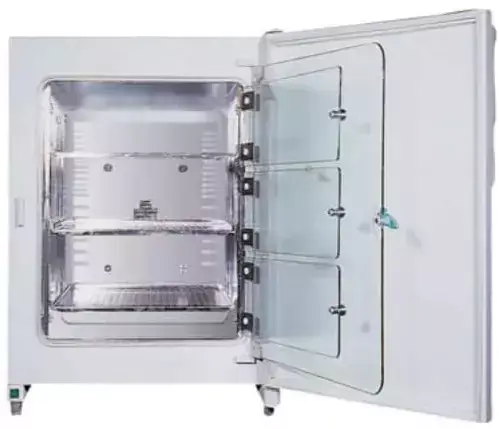

Heal Force IVF Lab CO2 Incubator
This incubator is the best product for the IVF lab uses. Therefore this incubator is designed according to the IVF lab (in vitro fertilization lab). While making it, all aspects related to the in vitro fertilization labs were kept in mind. This incubator gives 99.9 percent results. Which increase IVF success rate results. That’s why it could be a game changer product.
In other words it is one of the best IVF Lab Incubator in India. This is also a good thing for IVF center. It has all important features like decontamination. It also has inbuilt 99.9 % efficient HEPA filter. This is very similar product to the Hera Cell CO2 Incubator 150i – 240i but maybe even better.
Similarly, we also sell following products:-
- Zenpure VOC Gas Inline Filter
- Microscope Stage Warmer
- Rohem Sperm Counting Chamber
- Test Tube Warmer Digital
- IUI Lab Dry Incubator
- Brigon CO2 Indicator 0-10% (Fyrite Kit) Germany Imported
- Hepa Filter for Heracell Incubator
- Round Hepa Filter for Thermo Forma CO2 Incubator

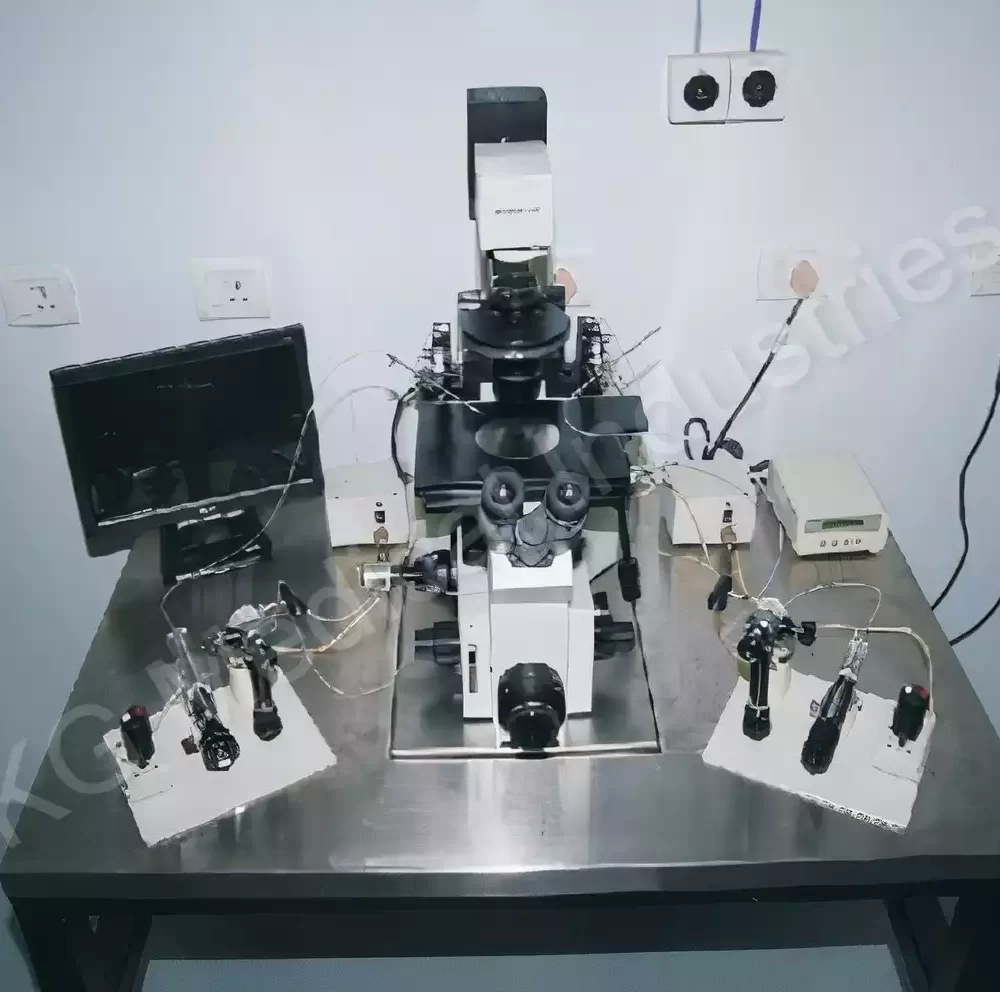

- Anti Vibration Table for ICSI Micromanipulator
