Description

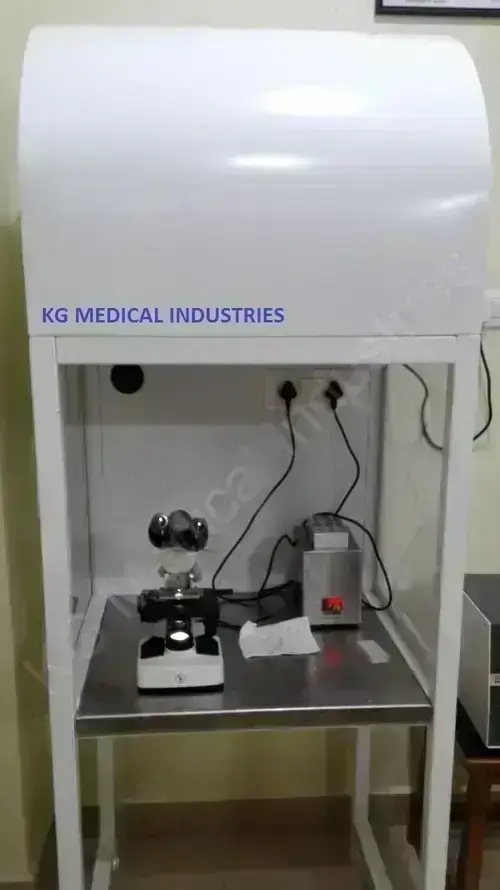

IUI Laminar Air Flow 2ftx2ft – Andrology Workstation 2ftx2ft – IUI Workstation 2ftx2ft
IUI Laminar Air Flow 2ftx2ft – Andrology Workstation 2ftx2ft – IUI Workstation 2ftx2ft is used to complete the IUI procedures. All types of IUI (Intrauterine insemination) procedures are done on top of its table area.
Technical Specification:-
| Make for | KG Medical Industries |
| Model | GI with powder Coated Vertical |
| Work Table | SS304G with Mirror Finish Surface |
| Cleanliness | Class 100 |
| Particle Retention | 0.3 Micron & above |
| Velocity | 90 Feet/Minute ± 20% or above or below |
| Noise Level | 56 decibel ± 5%- Centrifugal type |
| Illumination | 40 Watts, 4 Ft. Fluorescent Tubes with Diffusers |
| Disinfection | UV light |
| Power Sockets | 2 Nos. of 5 Amps Sockets for Future application or as per model |
| Temp. Accuracy | ± 0.5°C (Room Temperature needs to maintain 9°C less than set pt.) |
| Temp. Uniformity | 95% ± 5% |
| Power Supply | 220 Volt Single Phase, 50 Hz. 1.2 KVA |
HEPA- Filter |
|
| Media | Ultra clean glass Fiber paper – Imported |
| Casing | Epoxy coated CRCA Frame |
| Seperators | Minipleat no seperators |
| Retention | 0.3 Microns and above |
| Efficiency | 99.97% |
Pre- Filter |
|
| Media | Synthetic, Non-woven polyster fibers |
| Casing | Enamal Painted CRCA Frame |
| Retention | 10-15 Microns |
| Efficiency | 99.97% |
Uses |
|
| Product Uses Locations | |
| Product SKU | IUI_Laminar_Air_Flow |
| Product Warranty | One Years. |
| Applicable GST on Product | Current GST Tax is 18 % or can change as per government orders. |
How much space is required for installation of IUI Laminar Air Flow 2ftx2ft – Andrology Workstation 2ftx2ft – IUI Workstation 2ftx2ft:-
The length and width of IUI Laminar Air Flow 2ftx2ft – Andrology Workstation 2ftx2ft – IUI Workstation 2ftx2ft is about 2 feet x , 2 feet to fit it. At least this or more space is required this machine is fitted inside the IUI lab. So the buyer should follow how much space the entire IUI lab requires.
However, at least 100 square feet of area is required for any standard IUI lab to install all the basic IUI lab equipment and work properly. IUI lab size should not be increased too much because if it is increased more than required then it will be more difficult to keep class 100 standard of air quality of IUI lab.

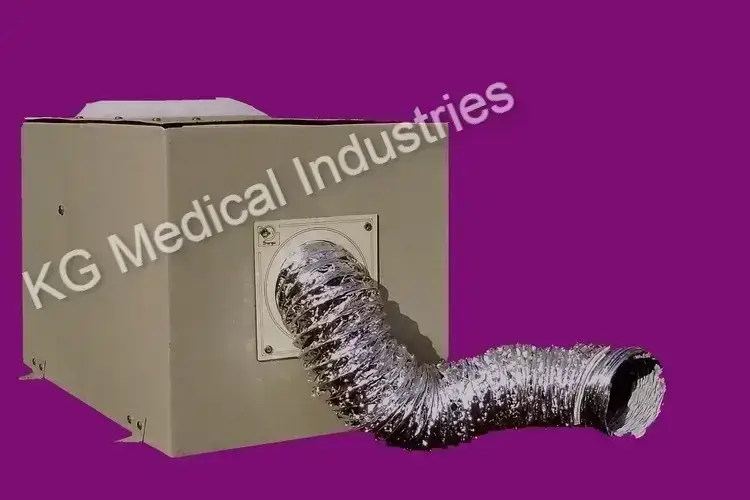

Yet due to some reason the size of the lab increases then you can also use air cleaner for IUI lab. Using an air cleaner will solve the problem of air quality.
Cleaning and Maintenance of IUI Laminar Air Flow 2ftx2ft – Andrology Workstation 2ftx2ft – IUI Workstation 2ftx2ft
70 percent alcohol is required to clean all types of IUI lab and IVF lab equipment. However, we are advised that first of all the product should be cleaned with double distilled water and only then should be cleaned with 70 percent alcohol.
The equipment should never be cleaned with 100% alcohol. It can damage the equipment and can also change the color of the equipment or it can also cause color torn.
We fit pre filter and Hepa filter in our product. Hepa filter cannot be cleaned. It gets spoiled from time to time and has to be changed but pre filter should be cleaned from time to time so we insist that pre filter which is fitted at the back of our product. Should be cleaned with air pressure, for this you can use a vacuum cleaner.
Product Warranty / Returnable
- Standard Warranty: One Year.
- Returnable: Non-Returnable.
